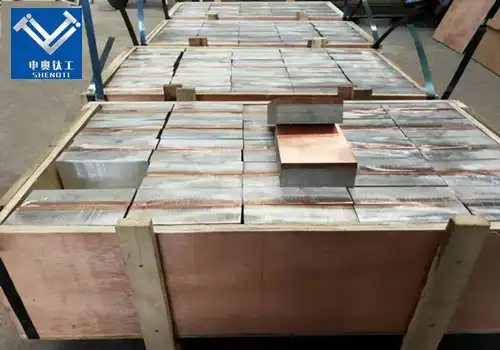

T2/1060 copper aluminum clad plate

High conductivity for efficient energy transfer.
Durable bonding ensures long-lasting performance.
Corrosion-resistant for harsh environments.
Lightweight yet structurally strong design.
Customizable dimensions for diverse applications.
Product Description

T2/1060 Copper Aluminum Clad Plate: High-Performance Solutions for Diverse Industries

The T2/1060 Copper Aluminum Clad Plate is a cutting-edge composite material that combines the lightweight and corrosion-resistant qualities of aluminum (1060) with the superior thermal and electrical conductivity of copper (T2). This clad plate, which was created using sophisticated explosive welding techniques, provides exceptional bonding strength and dependable performance in a range of demanding applications. It is widely used in sectors where durability and efficiency are crucial, like energy, electronics, and transportation.
In addition to being a more affordable option than solid copper, our product offers improved functionality for specific applications, meeting the demands of innovative and eco-aware industries.

Technical Specifications

Attribute Specification
Base Material T2 Copper, 1060 Aluminum
Clad Thickness Ratio Customized (e.g., 3:7, 5:5)
Maximum Plate Size Up to 3000mm x 1500mm
Thickness Range 0.5mm - 100mm
Bonding Strength ≥ 30 MPa
Electrical Conductivity Copper: ≥97% IACS; Aluminum: ≥60% IACS
Operating Temperature -196°C to 300°C
Corrosion Resistance Excellent in marine and industrial environments
Manufacturing Process Explosive Welding

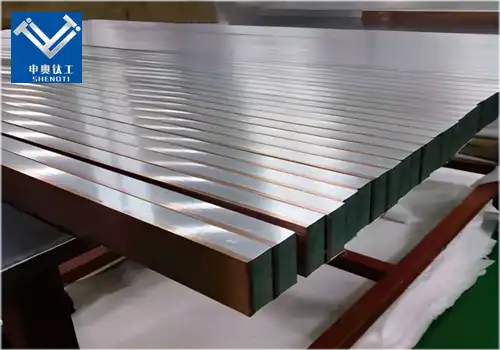

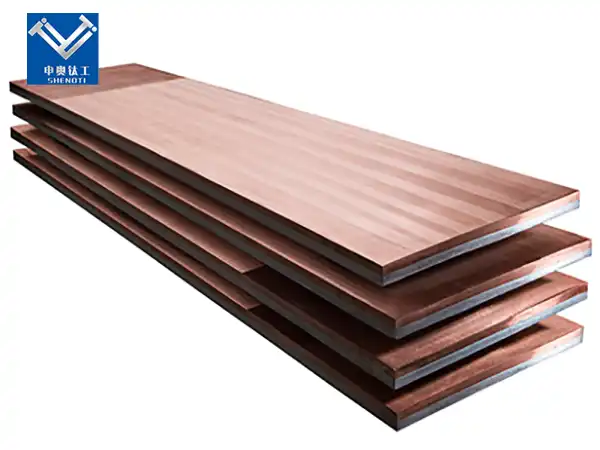

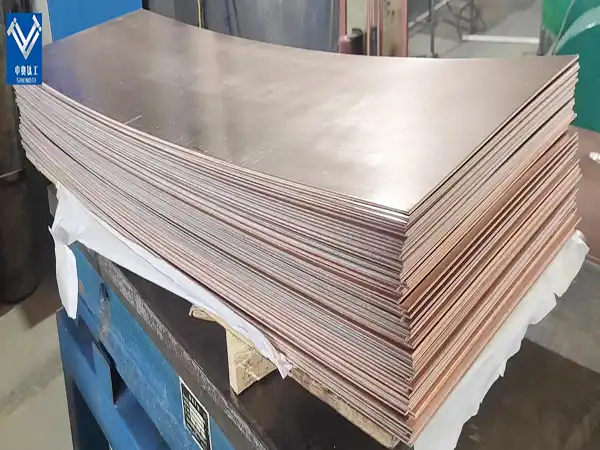

Copper aluminum clad plate Copper aluminum clad plate Copper aluminum clad plate
Copper aluminum clad plate Copper aluminum clad plate Copper aluminum clad plate

Product Features

  • Exceptional Conductivity: The T2 copper layer ensures outstanding electrical and thermal conductivity, crucial for power and heat transfer applications.
  • Lightweight Design: The integration of 1060 aluminum significantly reduces the overall weight while maintaining strength.
  • High Bonding Strength: Advanced explosive welding guarantees a robust and uniform bond between copper and aluminum layers.
  • Cost Efficiency: Achieves high performance at a lower cost compared to solid copper plates.
  • Corrosion Resistance: The aluminum layer provides protection against corrosion, enhancing longevity in harsh environments.
  • Customizable Specifications: Available in various thickness ratios and dimensions to meet specific project requirements.

Applications

The product is versatile, serving a broad range of applications:

  • Electrical and Power Industry: Used in busbars, connectors, and transformers for efficient energy distribution.
  • Electronics: Ideal for circuit boards and heat sinks due to its excellent conductivity and heat dissipation.
  • Transportation: Lightweight and durable, making it suitable for automotive and aerospace components.
  • Marine and Shipbuilding: Offers corrosion resistance in seawater environments, ensuring reliability.
  • Energy and Renewable Sector: Plays a vital role in solar panels, wind turbines, and battery connections.
  • Environmental Protection: Used in advanced water treatment and air purification systems.
Power Industry Hydrometallurgy Rail Transit
Printed circuit board copper recycling Electrolytic wastewater treatment Electrolysis of seawater Electroplating anode

Product production process

Product production process

Why Choose Us?

  • Research and Innovation: With a dedicated R&D team, we continuously innovate to meet the evolving demands of our clients. Our expertise in explosive welding and advanced coatings ensures cutting-edge solutions.
  • Proven Track Record: Operating for over 17 years, we have established a strong reputation for quality and reliability. Our products are trusted by clients worldwide, reflecting our commitment to excellence.
  • Quality Assurance: Our stringent quality control measures guarantee that every product meets the highest standards of performance and durability.
  • Customization Options: We offer tailored solutions to suit unique customer requirements, including specific thickness ratios and dimensions.
  • Efficient Service and Support: We prioritize timely delivery and provide robust after-sales support to ensure customer satisfaction.
  • OEM Services: Our flexible manufacturing capabilities allow us to fulfill both small and large-scale orders efficiently.
about us about us





Baoji City shenAo Metal Materials Co., Ltd. was founded in 2008 and is located in the "China Titanium Valley" Shaanxi Baoji High tech Industrial Development Zone. It focuses on the research and production of non-ferrous metal composite materials, precious metal coated titanium anodes (DSA), and titanium cathode products. Based on mature bimetallic explosive welding technology and advanced active coating manufacturing process, relying on strong resources in the Chinese titanium valley industry and the processing and manufacturing capabilities for bidding for the Olympics, we accurately and timely meet customer needs and create value for customers; Leading the development of energy-saving and environmentally friendly metal composite materials products through technological innovation, and continuously improving to meet customers' demand for long-life titanium electrodes.

The company has established close partnerships with hundreds of non-ferrous metal equipment manufacturers and electrochemical application enterprises, and has been designated as a long-term high-quality supplier.

The company has established research and development, production, and marketing departments, with strict process technology quality and testing standards to ensure reliable products and fast delivery efficiency to global customers.



Our Service

We provide a variety of customized services, mainly for the followingWe provide a variety of customized services, mainly for the following:

Waterjet Cutting
Laser Cutting
Welding
Plasma Welding
Polishing
Press
Hydraulic straightening machine
Bending
Drill Press

Waterjet Cutting Laser Cutting   Welding Plasma Welding  Polishing   Press   Hydraulic straightening machine Bending   Drill Press



Application Industries

Chemical Industry Environmental protection industry Marine Engineering metallurgy
Aerospace Pharmaceutical Industry Power Industry Power Industry



Our Factory

Our factories, patents and honors



Our Patents and Honors

Our factories, patents and honors

Our factories, patents and honors

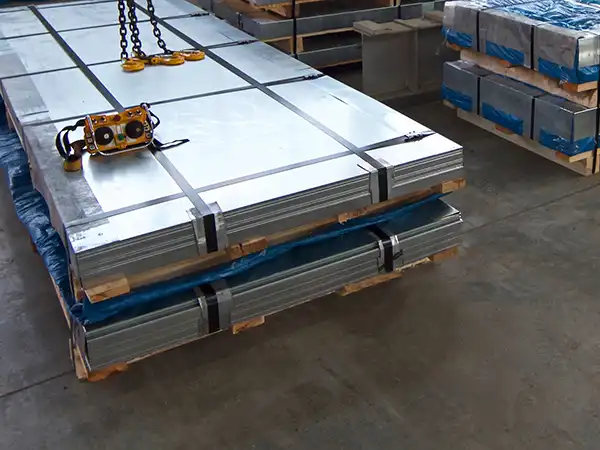

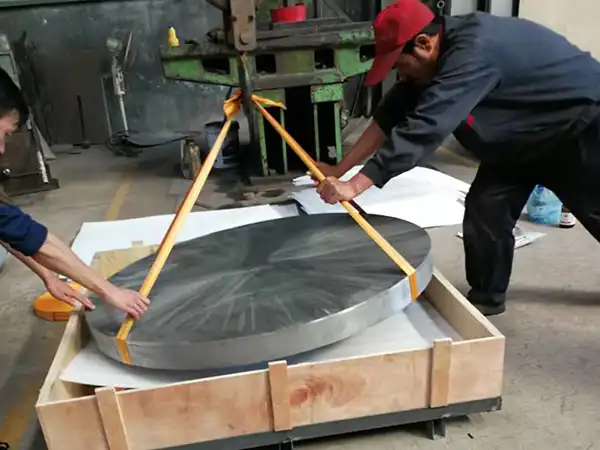

Our Packaging

Our Packaging Our Packaging Our Packaging Our Packaging Our Packaging
Our Packaging Our Packaging Our Packaging Our Packaging Our Packaging

Why Choose Us?



16 Years Experience

With 16 years of experience, Baoji City ShenAo Metal Materials Co., Ltd. ensures exceptional quality and expertise in metal materials.

Perfect Service

Baoji City ShenAo Metal Materials Co., Ltd. is committed to providing perfect service, ensuring customer satisfaction and timely delivery.

Professional Knowledge

With professional knowledge in non-ferrous metals and titanium, we deliver innovative and reliable solutions to customers.

Fast Delivery

We prioritize fast delivery, ensuring timely and efficient service to meet our customers' needs.

Frequently Asked Questions (FAQs)

Q1: What are the advantages of using a T2/1060 copper aluminum clad plate over a solid copper plate?
The T2/1060 clad plate offers comparable conductivity with reduced weight and cost, along with enhanced corrosion resistance.

Q2: Can the clad plate be customized to specific dimensions?
Yes, we provide tailored solutions to match your exact specifications.

Q3: What industries benefit most from this product?
Key industries include energy, electronics, transportation, and environmental protection.

Contact Us

Baoji City ShenAo Metal Materials Co., Ltd.

  • Address: Wenquan Village Industrial Park, High-Tech Zone, Baoji City
  • Contact: Wang Shujuan
  • Phone: 18729731603
  • Fax: +86-917-3380538
  • Email: zh@baojiti.com.cn

Let us partner with you to deliver the most advanced and reliable T2/1060 copper aluminum clad plates for your specific needs. Contact us today!
