Titanium platinum anode

Excellent corrosion resistance in aggressive environments.
High durability with platinum coating for longevity.
Superior conductivity for efficient electrochemical processes.
Stable performance under extreme conditions.
Customizable sizes to fit specific industrial needs.
Product Description

Titanium Platinum Anode Introduction

The Titanium Platinum Anode is a high-performance electrode used in a variety of demanding electrochemical processes, including water treatment, desalination, and electrolysis. Known for its exceptional corrosion resistance and longevity, this anode plays a pivotal role in industries that require durability, reliability, and efficiency in their electrochemical systems. Constructed from a titanium substrate coated with platinum, these anodes offer superior conductivity and exceptional resistance to corrosion, even in aggressive environments such as seawater and industrial chemicals.

At Baoji City ShenAo Metal Materials Co., Ltd., we specialize in providing high-quality Titanium Platinum Anodes that meet the stringent requirements of industries such as chemical processing, energy production, environmental protection, and more. Our products are engineered to support efficient electrochemical reactions, ensuring optimal performance and longevity.

Technical Specifications

Below is a detailed table of the technical specifications for our Titanium Platinum Anode:

Specification Value
Base Material Grade 1 Titanium
Coating Material Platinum
Coating Thickness 5-10 µm

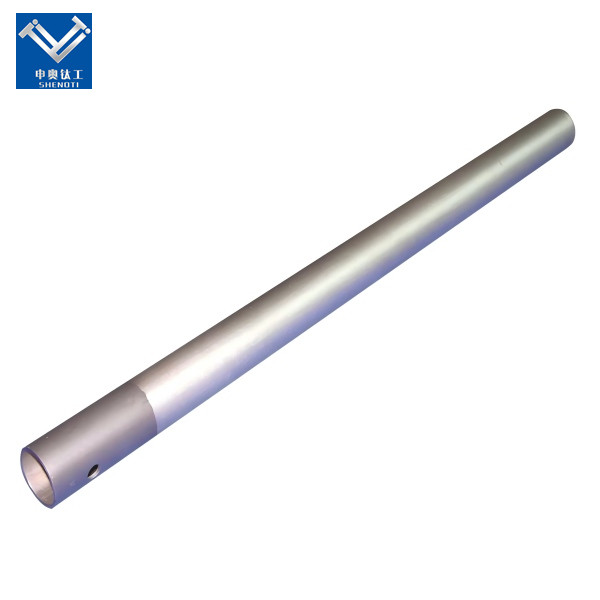

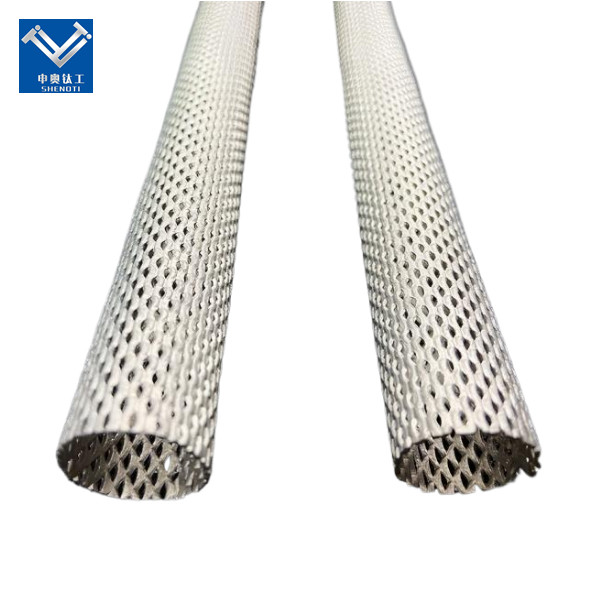

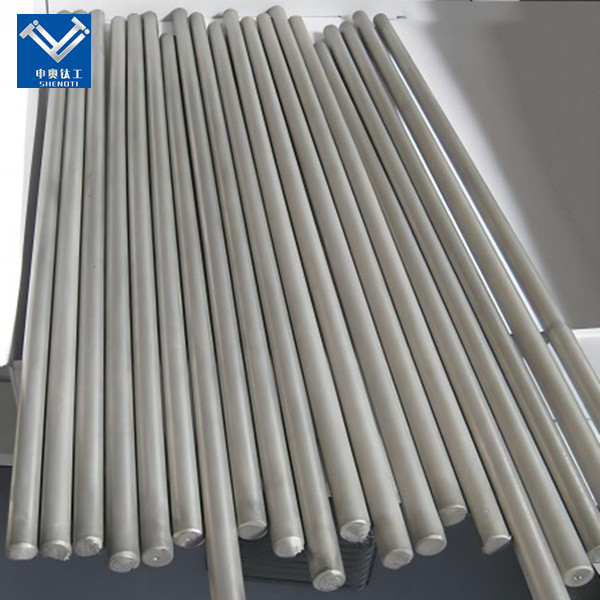

Anode Shape Rod, Plate, Mesh
Dimensions Customizable (Diameter: 3-50 mm)
Max Operating Temperature 450°C
Current Density 1000-5000 A/m²
Corrosion Resistance Excellent in seawater and chemical environments
Service Life 10-20 years (depending on conditions)
Electrolyte Compatibility Suitable for seawater, chlorine production, water treatment systems
Platinum coated titanium electrode Platinum coated titanium electrode Platinum coated titanium electrode Platinum coated titanium electrode Platinum coated titanium electrode

Titanium Platinum Anode Features

  • High Corrosion Resistance: Platinum-coated titanium provides outstanding resistance to corrosion, even in the harshest chemical environments, such as seawater desalination and industrial chemical processes.

  • Long Service Life: The combination of titanium and platinum ensures long-lasting durability, reducing the need for frequent replacements and maintenance.

  • High Conductivity: Platinum coating ensures that the anode maintains excellent electrical conductivity, optimizing the efficiency of electrolytic processes.
  • Customizable Sizes: Available in various shapes and sizes, including rods, plates, and meshes, to suit specific applications and requirements.
  • Environmentally Friendly: Our anodes contribute to eco-friendly solutions such as water purification and renewable energy production by reducing energy consumption and promoting sustainable processes.

Applications

The Titanium Platinum Anode is used in various industries and applications, including:

  • Water Treatment: For electrochemical water purification, wastewater treatment, and desalination.
  • Electrolytic Processes: Essential for electrolytic applications in the chemical, pharmaceutical, and metal industries.
  • Seawater Desalination: Used in seawater desalination plants to provide fresh water by eliminating salts and minerals from seawater.
  • Chlorine Production: Key in the electrolysis of saltwater to produce chlorine gas and sodium hydroxide.
  • Electrowinning: In the mining industry for recovering metals from ores using electrochemical processes.
  • Hydrogen Production: Used in electrolyzers for hydrogen generation through water splitting.
Power Industry Hydrometallurgy Rail Transit
Printed circuit board copper recycling Electrolytic wastewater treatment Electrolysis of seawater Electroplating anode

Product production process

Ruthenium coated titanium electrode Product production process Ruthenium coated titanium electrode Product production process Ruthenium coated titanium electrode Product production process Ruthenium coated titanium electrode Product production process Ruthenium coated titanium electrode Product production process
Ruthenium coated titanium electrode Product production process Ruthenium coated titanium electrode Product production process Ruthenium coated titanium electrode Product production process Ruthenium coated titanium electrode Product production process Ruthenium coated titanium electrode Product production process

Why Choose Us: Our Advantages

At Baoji City ShenAo Metal Materials Co., Ltd., we take pride in offering products that meet the highest industry standards and customer expectations. Here’s why you should choose us for your Titanium Platinum Anode needs:

  1. Research and Innovation We have an experienced R&D team that works closely with our clients to develop new processes and products. This ensures that we deliver innovative solutions that align with industry needs and technological advancements.

  2. Excellent Reputation With 17 years of stable production, we have built a solid reputation for delivering top-quality products and reliable customer service. Our Titanium products have earned the trust and praise of customers worldwide.

  3. Striving for Excellence Our strict production processes and comprehensive quality management system guarantee that every Titanium Platinum Anode meets the highest standards of performance, reliability, and durability.

  4. Customized Product Services We offer tailored solutions to meet your unique technical requirements, whether you need specialized sizes or coatings for your anodes. Our customization service ensures that your exact needs are met.

  5. Timely Delivery & Worry-Free After-Sales Service We prioritize customer satisfaction with timely deliveries and excellent after-sales support, ensuring that all your concerns are addressed promptly and effectively.

  6. OEM Services Our OEM services ensure that we can provide high-quality products under your brand, meeting all your manufacturing and technical specifications.

about us about us



Baoji City shenAo Metal Materials Co., Ltd. was founded in 2008 and is located in the "China Titanium Valley" Shaanxi Baoji High tech Industrial Development Zone. It focuses on the research and production of non-ferrous metal composite materials, precious metal coated titanium anodes (DSA), and titanium cathode products. Based on mature bimetallic explosive welding technology and advanced active coating manufacturing process, relying on strong resources in the Chinese titanium valley industry and the processing and manufacturing capabilities for bidding for the Olympics, we accurately and timely meet customer needs and create value for customers; Leading the development of energy-saving and environmentally friendly metal composite materials products through technological innovation, and continuously improving to meet customers' demand for long-life titanium electrodes.

The company has established close partnerships with hundreds of non-ferrous metal equipment manufacturers and electrochemical application enterprises, and has been designated as a long-term high-quality supplier.

The company has established research and development, production, and marketing departments, with strict process technology quality and testing standards to ensure reliable products and fast delivery efficiency to global customers.



Our Service

We provide a variety of customized services, mainly for the followingWe provide a variety of customized services, mainly for the following:

Waterjet Cutting
Laser Cutting
Welding
Plasma Welding
Polishing
Press
Hydraulic straightening machine
Bending
Drill Press

Waterjet Cutting Laser Cutting   Welding Plasma Welding  Polishing   Press   Hydraulic straightening machine Bending   Drill Press



Application Industries

Chemical Industry Environmental protection industry Marine Engineering metallurgy
Aerospace Pharmaceutical Industry Power Industry Power Industry



Our Factory

Our factories, patents and honors



Our Patents and Honors

Our factories, patents and honors

Our factories, patents and honors



Our Packaging

Our Packaging Our Packaging Our Packaging Our Packaging Our Packaging
Our Packaging Our Packaging Our Packaging Our Packaging Our Packaging

Why Choose Us?



16 Years Experience

With 16 years of experience, Baoji City ShenAo Metal Materials Co., Ltd. ensures exceptional quality and expertise in metal materials.

Perfect Service

Baoji City ShenAo Metal Materials Co., Ltd. is committed to providing perfect service, ensuring customer satisfaction and timely delivery.

Professional Knowledge

With professional knowledge in non-ferrous metals and titanium, we deliver innovative and reliable solutions to customers.

Fast Delivery

We prioritize fast delivery, ensuring timely and efficient service to meet our customers' needs.

Frequently Asked Questions (FAQs)

Q1: What is the lifespan of a Titanium Platinum Anode?
A1: The lifespan of a Titanium Anode typically ranges from 10 to 20 years, depending on the specific operating conditions, such as current density and environmental factors.

Q2: Can these anodes be customized for specific applications?
A2: Yes, we offer customization options for size, shape, and coating thickness to meet your specific requirements.

Q3: What industries use Platinum Anodes?
A3: These anodes are widely used in industries such as chemical processing, water treatment, electrowinning, seawater desalination, and chlorine production.

Q4: How do I know if the Platinum Anode is suitable for my application?
A4: Our technical team can assist in determining the best anode type for your needs based on your application details, including current density, temperature, and electrolyte type.

Contact Us

If you’re looking for high-quality Titanium Platinum Anodes and superior service, don’t hesitate to contact us. Our team is here to provide you with the most professional solutions to meet your needs.

  • Company Name: Baoji City ShenAo Metal Materials Co., Ltd.
  • Address: Wenquan Village Industrial Park, High Tech Zone, Baoji City, Shaanxi Province, China
  • Contact Person: Wang Shujuan
  • Phone: +86 18729731603
  • Fax: +86-917-3380538
  • Email: zh@baojiti.com.cn

We look forward to assisting you with all your Titanium Platinum Anode requirements!
