electroplating titanium electrode

Exceptional corrosion resistance in harsh conditions.
High stability for long-term electrochemical performance.
Durable iridium coating enhances electrode lifespan.
Superior conductivity for efficient energy transfer.
Customizable sizes for various industrial applications.
Product Description

Electroplating Titanium Electrode – Product Details

Introduction
Electroplating titanium electrodes are essential components in the electroplating process, known for their exceptional resistance to corrosion and superior conductivity. At Baoji City ShenAo Metal Materials Co., Ltd, we offer high-performance electroplating titanium electrodes tailored to meet the demanding needs of industries such as chemical, energy, environmental protection, and more. Our titanium electrodes are manufactured using cutting-edge technology, ensuring that they provide reliable and long-lasting performance in electrochemical applications.

Technical Specifications



Feature
Details
Substrate
Titanium material Gr1, Gr2/TA1, TA2
Specifications:
Plate, tube, mesh, rod, wire, strip and other special-shaped specifications.
Coating composition
Ti、Ru、Ir、 Pt、Ta、Sn、Co
Coating conductivity
10~7Ω·m
Working current density
<2000A/㎡
Metal content
8~25g/㎡
Coating thickness
8~12㎛
Working temperature
<60℃
Working life
>5 years

Iridium coated titanium electrode

Iridium coated titanium electrode

Iridium coated titanium electrode

Iridium coated titanium electrode

Iridium coated titanium electrode

Iridium coated titanium electrode

Iridium coated titanium electrode

Iridium coated titanium electrode

Iridium coated titanium electrode

Iridium coated titanium electrode

Product Features (Key Features)

  1. High Corrosion Resistance
    Titanium electrodes are naturally resistant to corrosion, making them ideal for use in harsh environments such as electroplating baths, wastewater treatment, and seawater desalination.

  2. Superior Durability
    Our electroplating titanium electrodes have a long service life, providing high efficiency with minimal maintenance required.

  3. Customizable Dimensions
    We offer a wide range of sizes and configurations, allowing our customers to choose electrodes that best fit their specific needs.

  4. Excellent Conductivity
    Titanium's conductivity, coupled with an active coating like platinum or ruthenium, ensures optimal performance during electrochemical reactions.

  5. Environmentally Friendly
    Manufactured with sustainable practices, our titanium electrodes support energy-saving and environmentally friendly technologies.

Applications

  • Electroplating
    Electroplating titanium electrodes are commonly used in various electroplating processes, ensuring the deposition of metals such as gold, silver, and copper onto different substrates.

  • Seawater Desalination
    Our electrodes are used in desalination plants for their resistance to seawater corrosion and their efficiency in electrolytic processes.

  • Water Treatment
    Titanium electrodes play a vital role in wastewater treatment systems, helping to purify water through electrochemical reactions.

  • Electrowinning
    They are widely used in electrowinning processes for metal extraction, thanks to their durability and high performance.

  • Chemical and Energy Industries
    In chemical reactors and energy production, electroplating titanium electrodes provide the necessary resistance to corrosion and high temperatures.

Power Industry Hydrometallurgy Rail Transit
Printed circuit board copper recycling Electrolytic wastewater treatment Electrolysis of seawater Electroplating anode

Product production process

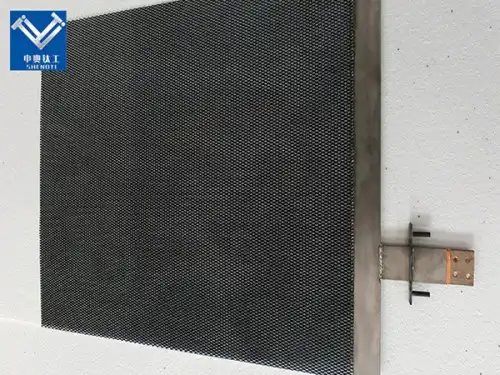

Ruthenium coated titanium electrode Product production process Ruthenium coated titanium electrode Product production process Ruthenium coated titanium electrode Product production process Ruthenium coated titanium electrode Product production process Ruthenium coated titanium electrode Product production process
Ruthenium coated titanium electrode Product production process Ruthenium coated titanium electrode Product production process Ruthenium coated titanium electrode Product production process Ruthenium coated titanium electrode Product production process Ruthenium coated titanium electrode Product production process

Why Choose Us

At Baoji City ShenAo Metal Materials Co., Ltd, we focus on providing products that not only meet but exceed our customers’ expectations. Here’s why we’re the best choice for electroplating titanium electrodes:

  1. Research and Innovation
    We have a dedicated R&D team that constantly innovates and improves our product offerings. By staying ahead of industry trends, we offer solutions that meet the unique challenges faced by our customers.

  2. Excellent Reputation
    With 17 years of experience, our company has built a reputation for delivering high-quality products and reliable customer service. Our electroplating titanium electrodes have earned the trust of clients across various industries.

  3. Striving for Excellence
    Our strict quality control processes ensure that every titanium electrode meets the highest standards. Whether for small-scale testing or large production runs, we deliver high-quality products on time.

  4. Customized Product Services
    We understand that every project is unique. That’s why we offer customizable titanium electrodes to suit various specifications and technical requirements.

  5. Timely Delivery and After-Sales Support
    We’re committed to providing excellent customer service. From fast response times to reliable after-sales support, we ensure that our customers’ needs are met efficiently.

  6. OEM Services
    We offer OEM services to deliver tailor-made solutions to meet the specific demands of your project.

about us about us



Baoji City shenAo Metal Materials Co., Ltd. was founded in 2008 and is located in the "China Titanium Valley" Shaanxi Baoji High tech Industrial Development Zone. It focuses on the research and production of non-ferrous metal composite materials, precious metal coated titanium anodes (DSA), and titanium cathode products. Based on mature bimetallic explosive welding technology and advanced active coating manufacturing process, relying on strong resources in the Chinese titanium valley industry and the processing and manufacturing capabilities for bidding for the Olympics, we accurately and timely meet customer needs and create value for customers; Leading the development of energy-saving and environmentally friendly metal composite materials products through technological innovation, and continuously improving to meet customers' demand for long-life titanium electrodes.

The company has established close partnerships with hundreds of non-ferrous metal equipment manufacturers and electrochemical application enterprises, and has been designated as a long-term high-quality supplier.

The company has established research and development, production, and marketing departments, with strict process technology quality and testing standards to ensure reliable products and fast delivery efficiency to global customers.



Our Service

We provide a variety of customized services, mainly for the followingWe provide a variety of customized services, mainly for the following:

Waterjet Cutting
Laser Cutting
Welding
Plasma Welding
Polishing
Press
Hydraulic straightening machine
Bending
Drill Press

Waterjet Cutting Laser Cutting   Welding Plasma Welding  Polishing   Press   Hydraulic straightening machine Bending   Drill Press



Application Industries

Chemical Industry Environmental protection industry Marine Engineering metallurgy
Aerospace Pharmaceutical Industry Power Industry Power Industry



Our Factory

Our factories, patents and honors



Our Patents and Honors

Our factories, patents and honors

Our factories, patents and honors



Our Packaging

Our Packaging Our Packaging Our Packaging Our Packaging Our Packaging
Our Packaging Our Packaging Our Packaging Our Packaging Our Packaging

Why Choose Us?



16 Years Experience

With 16 years of experience, Baoji City ShenAo Metal Materials Co., Ltd. ensures exceptional quality and expertise in metal materials.

Perfect Service

Baoji City ShenAo Metal Materials Co., Ltd. is committed to providing perfect service, ensuring customer satisfaction and timely delivery.

Professional Knowledge

With professional knowledge in non-ferrous metals and titanium, we deliver innovative and reliable solutions to customers.

Fast Delivery

We prioritize fast delivery, ensuring timely and efficient service to meet our customers' needs.

Frequently Asked Questions (FAQs)

  • What are electroplating titanium electrodes made of?
    Electroplating titanium electrodes are made from high-purity titanium, typically Grade 2, with a platinum or ruthenium coating for enhanced performance.

  • What is the lifespan of electroplating titanium electrodes?
    The lifespan depends on the application, but our electrodes are designed to last for years with proper maintenance.

  • Can I customize the size of the electrodes?
    Yes, we offer customizable dimensions to meet your specific needs.

  • How are these electrodes used in electroplating?
    Electroplating titanium electrodes are used to conduct electric current through the electrolyte, allowing the deposition of metals onto the workpiece.

  • What industries use electroplating titanium electrodes?
    These electrodes are widely used in electroplating, water treatment, chemical manufacturing, energy production, and environmental protection.

Contact Us

We are ready to provide you with the best titanium electrode solutions for your project needs. Please feel free to contact us for more information or a quote.

  • Company Name: Baoji City ShenAo Metal Materials Co., Ltd
  • Address: Wenquan Village Industrial Park, High-tech Zone, Baoji City
  • Contact: Wang Shujuan
  • Phone: 18729731603
  • Fax: +86-917-3380538
  • E-mail: zh@baojiti.com.cn

We look forward to working with you!
